XRF Pellet Press | Manual & Digital Models

Pellet Press

STANDART: –

LT-A9750 Pellet Press | Manual

LT-A9760 Pellet Press | Digital

PRODUCT DETAILS

The Pellet Press is designed to prepare solid and stable pressed pellets from finely ground powder samples for XRF and other spectral analysis applications. Liya Test offers manual and digital models to meet different laboratory sample-preparation requirements.

XRF sample preparation: Converts finely ground powders into compact analytical pellets.
Manual and digital models: Available as LT-A9750 Manual and LT-A9760 Digital versions.
High pressing force: Official product information specifies a maximum load of approximately 250 kN.
Double-flow pump: Provides controlled and precise pressure application.
Manual load indication: The LT-A9750 displays applied pressure through a clearly visible manometer.
Digital load measurement: The LT-A9760 uses a load cell for precise force measurement.
Digital LCD display: Allows the applied load to be monitored directly on the digital model.
Protective enclosure: Four-sided Plexiglas panels surround the pressing area.
Aluminium frame: Supports the protective enclosure and press structure.
Compact laboratory design: Suitable for XRF sample-preparation areas and material laboratories.
Wide application range: Suitable for geology, mining, metallurgy, cement, ceramics, glass, environmental and recycling laboratories.

TECHNICAL SPECIFICATIONS

Product Code	Product Name	Maximum Load	External Dimensions (cm)	Weight (kg)	Power Supply
LT-A9750	Manual Pellet Press	250 kN / approx. 25 ton	40 × 25 × 55	22	—
LT-A9760	Digital Pellet Press	250 kN / approx. 25 ton*	To Be Confirmed*	25	220 V, 1 Ph, 50 Hz

TECHNICAL DOCUMENT

Description

What Is an XRF Pellet Press?

The XRF Pellet Press is designed to prepare compact and stable pellets from finely ground powder samples. Pressed pellets provide a flat and consistent analytical surface for X-ray fluorescence and other spectral analysis applications.

The Liya Test Pellet Press is available in two configurations. The LT-A9750 Manual Pellet Press uses a manometer for load monitoring, while the LT-A9760 Digital Pellet Press incorporates a load cell and digital LCD display.

Manual and Digital Pellet Press Models

The manual model provides a simple mechanical operating system. The operator applies pressure using the hydraulic system and monitors the applied load through the manometer.

The digital model uses a load cell to measure pressing force electronically. The resulting value is displayed on the LCD screen, making it easier to monitor and repeat selected pressing conditions.

Both configurations are intended to provide controlled sample preparation for laboratory analysis.

Up to 250 kN Pressing Load

Liya’s current English description specifies a maximum load of 250 kN. This corresponds to approximately 25 tonnes of force.

The hydraulic system uses a double-flow pump, allowing the operator to approach the required load efficiently and then apply pressure more precisely.

Pressing force should be selected according to the sample material, pellet diameter, grinding fineness and whether a binder is used.

Pellet Preparation for XRF Analysis

Finely ground powder is placed inside a suitable pellet mould. The mould is then positioned in the press and the required load is applied.

Under pressure, the individual particles form a compact pellet with a relatively smooth analytical surface. Consistent sample grinding, pellet mass and pressing conditions help improve comparability between repeated analyses.

Pressed-pellet preparation is widely used for geological, mineral, cement, ceramic, glass and other powdered laboratory materials.

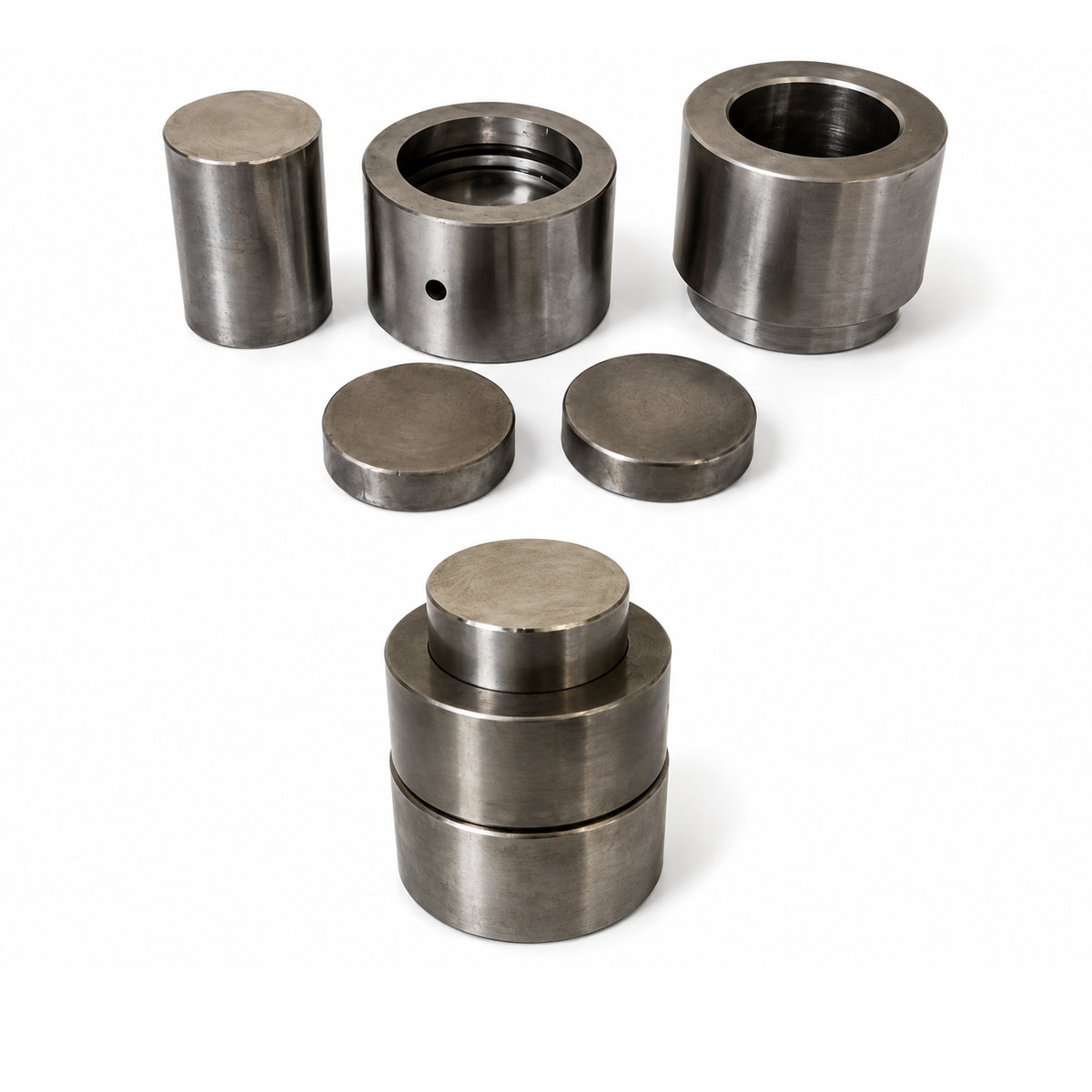

Pellet Mould Options

Liya Test lists several mould diameters for the Pellet Press.

Available options include Ø32 mm, Ø35 mm, Ø40 mm and Ø51.5 mm. This range allows laboratories to select a pellet format according to the analytical equipment and sample-preparation procedure.

Protective Laboratory Construction

The pressing area is surrounded on four sides by Plexiglas protective panels supported by an aluminium frame.

This structure separates the operator from the working area during pellet preparation. The press is designed for bench-top laboratory use and can be integrated into routine XRF sample-preparation workflows.

Overall, the Liya Test XRF Pellet Press combines manual or digital load monitoring, hydraulic pressing and multiple pellet mould options to support reliable preparation of solid analytical samples.
