Concrete Flow Table Test Set
STANDART: EN 12350-5
LT-C0023 Concrete Flow Table Test Set
LT- C0023/1 Flow Table
LT-C0023/2 Flow Table
LT- C0023/3 Flow Table
The Concrete Flow Table Test Set is used to determine the consistency and flow behaviour of fresh concrete with high workability. The concrete sample is placed in the flow mould, compacted and released onto the hinged table. Controlled dropping of the table causes the concrete to spread, and the final flow diameter is measured in two perpendicular directions. The set is designed for testing in accordance with EN 12350-5.
- LT-C0023: Concrete Flow Table Test Set
- LT-C0023/1: Flow Table, 700 × 700 mm
- LT-C0023/2: Flow Mould, Ø130 × Ø200 × 200 mm
- LT-C0023/3: Tamping Bar, 40 × 40 × 335 mm
- Application: Determination of fresh concrete consistency by the flow table method.
- Hinged table: Provides controlled lifting and dropping movement.
- Centre marking: 210 mm diameter reference marking assists correct mould positioning.
- Measurement guides: Perpendicular lines support flow diameter measurement.
- Flow mould: Used to form the fresh concrete sample before testing.
- Tamping bar: Square-section bar supports controlled compaction of the sample.
- Standard: EN 12350-5
| Product Code | Product Name | Dimensions (mm) | Material / Feature |
| LT-C0023 | Concrete Flow Table Test Set | — | Complete Set |
| LT-C0023/1 | Flow Table | 700 × 700 | Corrosion-Resistant |
| LT-C0023/2 | Flow Mould (Cone) | Ø130 × Ø200 × 200 | 1.5 mm Thickness |
| LT-C0023/3 | Tamping Bar | 40 × 40 × 335 | Square Section |

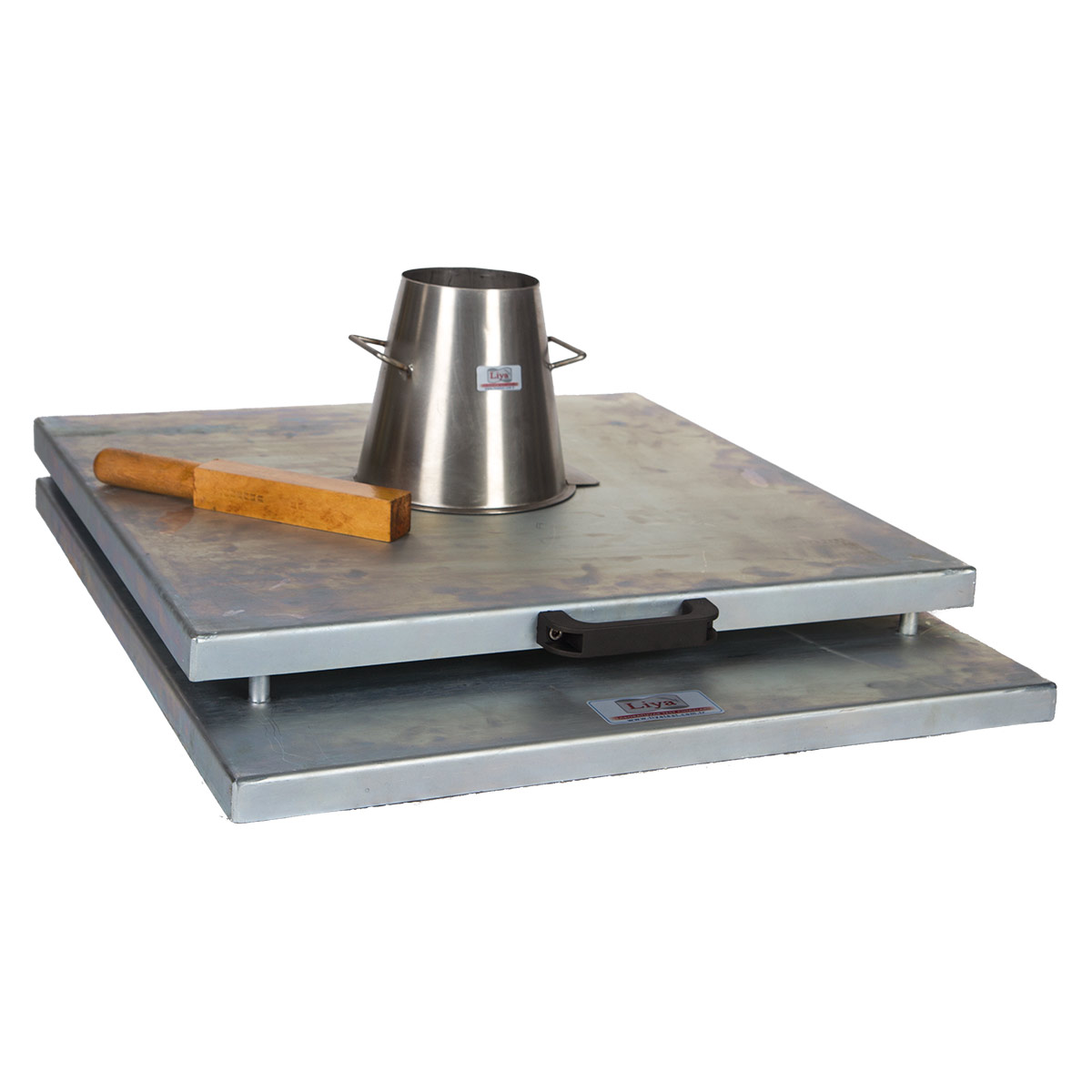

LT_BETON_YAYILMATABLASI_
What Is a Concrete Flow Table Test Set?
The Concrete Flow Table Test Set is used to determine the consistency and flow behaviour of fresh concrete with relatively high workability. The test evaluates how far a prepared concrete sample spreads across a controlled table surface after a specified sequence of movements.
Liya Test supplies the system as a complete set including the flow table, flow mould and tamping bar.
Flow Table Test Principle
The fresh concrete sample is placed inside the flow mould positioned at the centre of the table. The mould is filled and compacted according to the applicable test procedure.
After preparation, the mould is lifted vertically. The hinged table is then raised and allowed to drop in a controlled sequence.
These movements cause the fresh concrete to spread over the table surface.
At the end of the test, the spread diameter is measured in two perpendicular directions. The measured values are used to evaluate the consistency of the concrete mixture.
700 × 700 mm Flow Table
The LT-C0023/1 Flow Table has dimensions of 700 × 700 mm.
Its hinged construction provides the controlled lifting and dropping movement required during the test.
The table includes a 210 mm centre reference marking to assist correct positioning of the flow mould. Perpendicular measurement lines also help the operator measure the spread in two directions.
Flow Mould
The LT-C0023/2 Flow Mould has dimensions of:
Ø130 × Ø200 × 200 mm
The mould is manufactured with a listed thickness of 1.5 mm.
It shapes the fresh concrete sample before the flow sequence begins and helps maintain consistent initial test conditions.
Tamping Bar
The LT-C0023/3 Tamping Bar measures:
40 × 40 × 335 mm
Its square cross-section supports controlled compaction of the concrete during mould filling.
Proper preparation of the sample is important because inconsistent compaction can affect the final spread result.
EN 12350-5 Flow Table Testing
The test set is designed for fresh concrete flow testing according to EN 12350-5.
The method is used to assess the consistency of fresh concrete by measuring its spread on the flow table after the specified table movement.
The result helps laboratories compare the workability and flow characteristics of different concrete mixtures under controlled conditions.
Laboratory Applications
The Concrete Flow Table Test Set can be used in:
- concrete laboratories
- ready-mixed concrete plants
- construction site laboratories
- quality control departments
- research laboratories
- fresh concrete testing applications
Overall, the Concrete Flow Table Test Set combines the required table, mould and tamping equipment in a single system for controlled fresh concrete consistency testing according to EN 12350-5.
