Automatic Core-Rock Compression Testing Machine
STANDART: EN 12390-3, 12390-4; BS 1881, ASTM C39 GOST 10180-2012
LT-R0060 Automatic Core-Rock Compression Testing Machine | 600 kN
LT-R0060/1 Load Frame| 600 kN
LT-R0070/4 Hoek Cell for Triaxial Testing
LT-R0225 Hydraulic Power Pack | Digital Data Acquisition & Control System
LT-R0226 Hydraulic Power Pack
LT-R0227 Digital Data Acquisition & Control System
LT-R0228 YHigh Precision Pressure Transducer
LT-R0229 Software
LT-R0235 Distance Piece
LT-R0236 Distance Piece
LT-R0237 Distance Piece
LT-R0800 Computer & Printer
Automatic Core-Rock Compression Testing Machine is developed for controlled compression testing of intact rock core specimens. The 600 kN loading system provides stable axial force for uniaxial compression tests. With a suitable Hoek Cell and confining-pressure system, the machine can also support triaxial rock testing. Automatic hydraulic loading, digital data acquisition and computer software provide precise test control and repeatable laboratory results.
- 600 kN Load Capacity: Provides controlled compression loading for intact rock cores.
- Uniaxial Rock Testing: Determines compressive behaviour under axial loading.
- Triaxial Test Support: Compatible with a suitable Hoek Cell and confining-pressure system.
- Automatic Hydraulic Loading: Controls the loading process with minimal operator influence.
- Adjustable Loading Rate: Supports controlled test-rate selection.
- Digital Data Acquisition: Records and displays load data during testing.
- Real-Time Graphs: Allows load-time behaviour to be monitored during the test.
- High-Precision Pressure Transducer: Optional sensor supports improved measurement performance.
- Distance Pieces: Different spacer sizes adapt the working area to specimen dimensions.
- Safety System: Emergency stop, travel limits and pressure protection support safe operation.
- Power Supply: 220 V, 50–60 Hz, 1 ph.
- Product Code: LT-R0060.
- Reference Standard: ASTM D7012-23 for uniaxial and triaxial testing of intact rock cores.
| Product Code | Product Name | Dimensions (cm) | Weight (kg) | Power Supply |
| LT-R0060 | 600 kN Automatic Core-Rock Compression Testing Machine | 75 × 60 × 100 | 600 | 220 V, 50–60 Hz, 1 ph |
| LT-R0060/1 | 600 kN Load Frame | 37 × 60 × 100 | 500 | — |
| LT-C0225 | Hydraulic Power Pack and Digital Data Acquisition & Control System | 38 × 36 × 92 | 100 | 220 V, 50–60 Hz, 1 ph |
| LT-C0226 | Hydraulic Power Pack | 38 × 36 × 92 | 98 | 220 V, 50–60 Hz, 1 ph |
| LT-C0227 | Digital Data Acquisition & Control System | — | — | 220 V, 50–60 Hz, 1 ph |
| LT-C0228 | High Precision Pressure Transducer | — | — | — |
| LT-C0229 | Software | — | — | — |
| LT-C0235 | Distance Piece | Ø20.5 × 2.5 | — | — |
| LT-C0236 | Distance Piece | Ø20.5 × 5 | — | — |
| LT-C0237 | Distance Piece | Ø20.5 × 8 | — | — |
| LT-G0800 | Computer & Printer | — | — | 220 V, 50–60 Hz, 1 ph |
LT_KAYA_HOEKCELPRESS_
Rock Compression Testing Machine for Intact Rock Cores
The Rock Compression Testing Machine provides controlled axial loading for the mechanical testing of intact rock core specimens. The LT-R0060 model offers 600 kN load capacity and combines a rigid loading frame with an automatic hydraulic power unit and digital control system. Therefore, rock mechanics laboratories can perform compression tests under stable and repeatable conditions.
600 kN Automatic Loading System
The rigid load frame maintains specimen alignment during high-force testing. Hardened compression platens transfer the load to the rock core. In addition, the upper platen accommodates small alignment differences between the specimen surfaces.
The hydraulic system controls the applied force throughout the test. First, the machine approaches the specimen rapidly. After contact, the system switches to the selected test rate. It then increases the load until the programmed test condition or specimen failure occurs.
This automatic sequence reduces manual intervention. As a result, laboratories can achieve more consistent loading conditions between different specimens.
Uniaxial Rock Compression Testing
For a uniaxial test, the operator places the prepared rock core between the compression platens. The machine then applies axial force without additional lateral confinement.
The test determines the compressive behaviour of intact rock. ASTM D7012-23 Method C covers uniaxial compressive strength, while Method D includes deformation measurements for parameters such as Young’s modulus and Poisson’s ratio.
Accurate specimen preparation remains important. Flat and parallel end surfaces help distribute the test load evenly across the rock core.

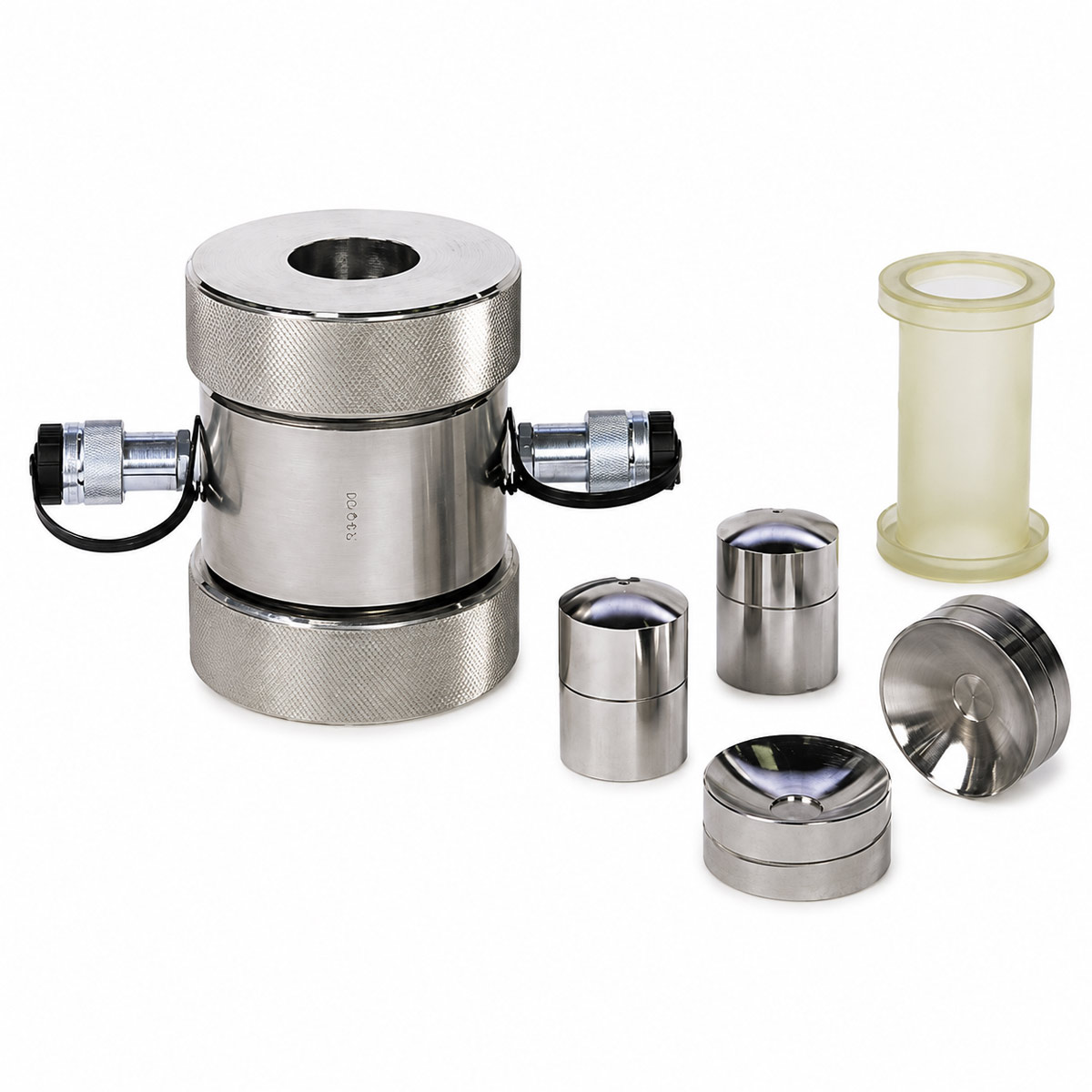

Triaxial Testing with a Hoek Cell
The system can also support triaxial applications when equipped with a suitable Hoek Cell and confining-pressure unit. The Hoek Cell applies lateral pressure around the specimen while the compression machine provides axial load.
This arrangement allows laboratories to study rock behaviour under different stress states. According to ASTM D7012-23, Methods A and B cover triaxial compression testing of intact rock cores under different confining pressures.
Digital Control and Data Recording
The digital control unit monitors load values throughout the test. Operators can follow the test progress and view load-time information in real time.
Computer software stores specimen data, test results and graphs. Users can reopen previous tests and prepare reports without manually transferring measurement values.
Safe and Repeatable Rock Testing
Pressure protection, travel limits and emergency-stop controls support safe laboratory operation. Different distance pieces also allow the working space to adapt to various specimen dimensions.
As a result, the Rock Compression Testing Machine combines 600 kN capacity, automatic hydraulic loading and digital data management in one professional rock-testing system.
