Automatic Consolidation Test Machine | 15 kN

Motorized Automatic Consolidation Frame

STANDART: BS 1377:5; ASTM D2435, D3877, D4546; AASHTO T216, TS 1900-2

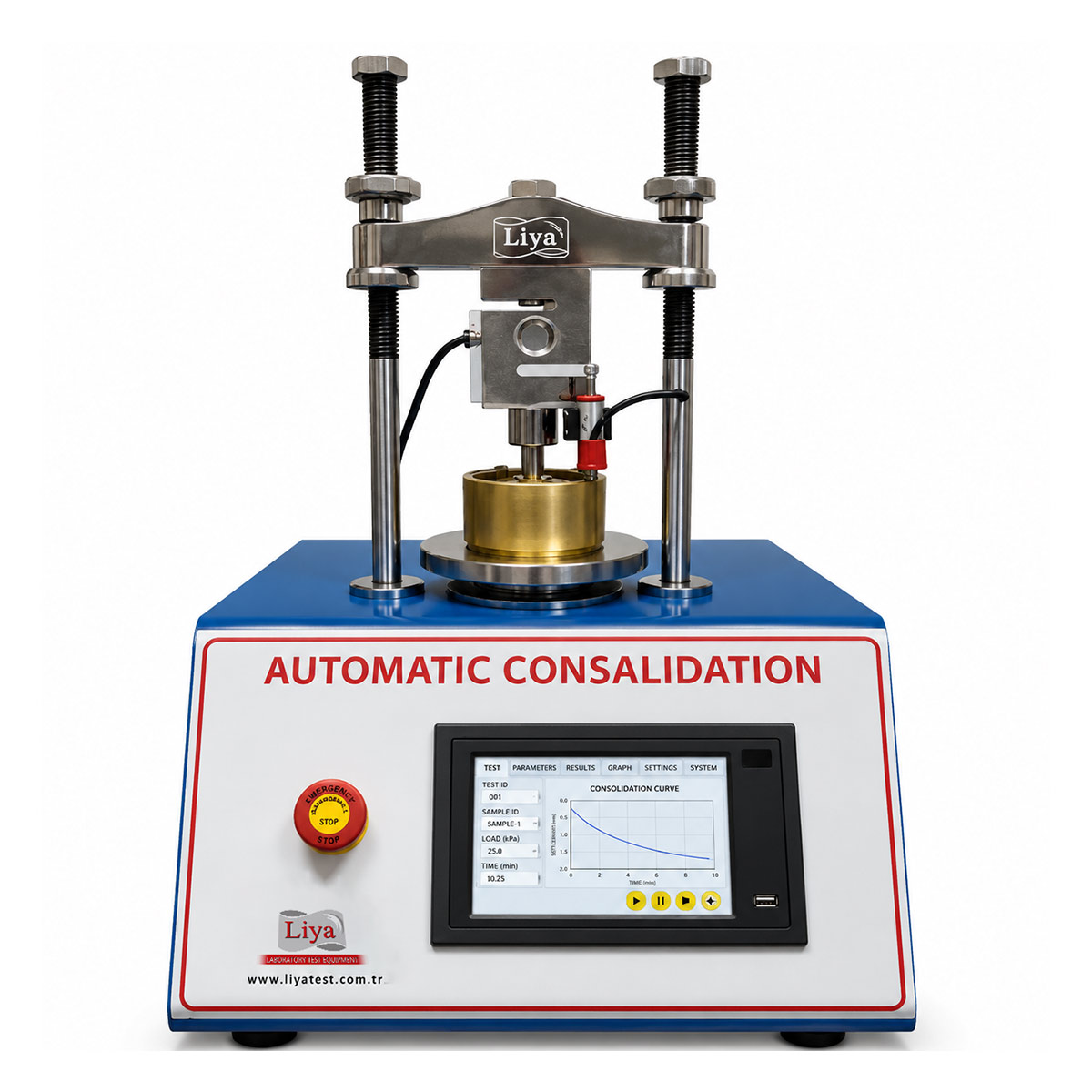

LT-S0255 Motorized Automatic Consolidation Frame

PRODUCT DETAILS

The Motorized Automatic Consolidation Frame is designed for fully automatic one-dimensional consolidation and swell testing of soil specimens. The system automatically controls the loading sequence, records deformation data and reduces operator intervention during long-duration geotechnical tests.

Fully automatic consolidation testing: Performs one-dimensional consolidation and swell tests.
Up to 32 loading stages: User-defined loading sequences can be completed automatically.
Constant-load and constant-volume swell tests: Supports different soil swelling procedures.
15 kN load range: Motorized loading system provides controlled vertical loading.
7" TFT touch screen: Graphical colour interface provides easy test control.
Integrated data acquisition: Records test and sensor data during operation.
Automatic test software: Supports test execution, data processing and result evaluation.
PC connection: Ethernet communication enables computer-based test management.
Flexible test configuration: Target loads can be changed during a test.
Multiple-unit control: Up to 16 automatic consolidation units can be managed from one PC.
Universal power supply: 90–240 V AC, 50–60 Hz, 1 Ph.
Product code: LT-S0255.

TECHNICAL SPECIFICATIONS

Product Code	Product Name	Maximum Load	Display	Control	Power Supply
LT-S0255	Motorized Automatic Consolidation Frame	15 kN	7" TFT Touch Screen	Fully Automatic	90–240 V AC, 50–60 Hz, 1 Ph

TECHNICAL DOCUMENT

Description

What Is an Automatic Consolidation Test Machine?

The Automatic Consolidation Test Machine is designed to determine the compression, deformation and swelling behaviour of soil specimens under controlled vertical loading.

One-dimensional consolidation testing is commonly performed using an oedometer arrangement. The soil specimen is laterally restrained and subjected to incremental vertical loads while deformation is monitored over time. The resulting data help geotechnical laboratories evaluate settlement and compressibility characteristics of soils.

Fully Automatic Loading Sequence

The LT-S0255 automatically applies user-defined loading stages after the specimen and test parameters are prepared.

The Turkish Liya Test product description states that the system can perform up to 32 loading stages without continuous operator intervention. It also supports standard consolidation, constant-load swelling and constant-volume swelling procedures. Many conventional test programmes may continue for 24 to 48 hours, making automatic operation particularly useful for long-duration testing.

15 kN Motorized Loading System

The current English product page specifies a total loading range of 15 kN.

The loading system controls vertical force according to the programmed test sequence. Variable operating speed allows the system to be adapted to different specimen and test requirements. Target loads can also be modified during an active test when required.

7-Inch TFT Touch Screen

A 7-inch colour TFT touch screen provides access to the control and test functions.

Sensor data can be monitored and stored throughout the test. The Turkish product page states that measurement values can be displayed in SI or Imperial units and transferred to a computer through an Ethernet connection.

Consolidation Software and Multi-Unit Control

The system is supplied with one-dimensional consolidation software for test management and reporting.

Liya Test states that saved configurations can be reused for repeat tests. In addition, up to 16 automatic soil consolidators can be controlled from a single PC, helping laboratories manage multiple simultaneous tests more efficiently.

Standards for One-Dimensional Consolidation Testing

The LT-S0255 product page lists BS 1377-5, ASTM D2435, ASTM D3877, ASTM D4546, AASHTO T216 and TS 1900-2 among its applicable test references.

The current ASTM edition for incremental loading consolidation is ASTM D2435/D2435M-25. The current international oedometer reference ISO 17892-5:2017 remains valid and covers the determination of soil compressibility characteristics by incremental loading.

Overall, the LT-S0255 Automatic Consolidation Test Machine combines automatic loading, digital data acquisition and software-based test management to support long-duration soil consolidation and swelling studies.
