HomeSOIL TEST MACHINESSoil Mechanics LABORATORY TYPE VANE SHEAR
Previous product
DIGITAL PULL-OFF STRENGTH (BOND) TESTER
Back to products
Next product
Soil Proctor Penetrometer

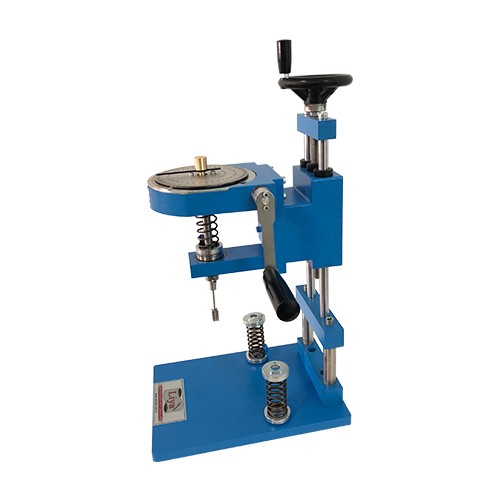

LABORATORY TYPE VANE SHEAR

STANDART: ASTM D6951

LT-S0100 LABORATORY TYPE VANE SHEAR

LT-S0102  MOTORIZED LABORATORY TYPE VANE SHEAR

Categories: Soil Mechanics, SOIL TEST MACHINES
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • ACCESSORIES
  • TECHNICIAL SPECIFICATIONS
  • TECHNICAL DOCUMENTS
Description

Description

Laboratory Vane Apparatus is based on a original concept of the Transport and Road Research Laboratory of the United Kingdom.
Laboratory Vane Apparatus is Lightweight, compact and portable, ideal for site or main laboratory, Convenient and rapid method of determining shear strength of soft soils, Easy to use: many hundreds in operation today.

It can be provided with a wide range of vane sizes, although as standard, it is sold with the 12.7 mm square vane and a set of four calibrated springs. The test can be performed directly on the sample or in the sample

contained in the sampling tube. In this case Attachment for Ø38 and Ø100 mm sampling tubes, should be used.

A motorizing unit is also available. Two alternatives are available according to standards.

BS Model is including driving belt, pulley set and fixing studs. Testing speed is 6 to 12°/min.

ASTM Model is including driving belt, pulley set and fixing studs. Testing speed is 60 to 90°/min.

ACCESSORIES

ACCESSORIES

TECHNICIAL SPECIFICATIONS

TECHNICIAL SPECIFICATIONS

Product

Code

Product NameExt. Dimensions (cm)Weight (kg)
LT-S0100LABORATORY TYPE VANE SHEAR240x210x5011
LT-S0102MOTORIZED LABORATORY TYPE VANE SHEAR62x25x6520
TECHNICAL DOCUMENTS

TECHNICAL DOCUMENTS
