STANDART:
BS 1377:9, 1924:2
LT-S0015 Sand Replacement Test Set. 100 mm
LT-S0015/1 Cone With Valve And Upper Cylinder, Ø 100 mm for LT-S0015
LT-S0015/2 Calibration Container for LT-S0015
LT-S0015/3 Metal Tray for LT-S0015
LT-S0016 Sand Replacement Test Set. 150 mm
LT-S0016/1 Cone With Valve And Upper Cylinder, Ø 150 mm for LT-S0016
LT-S0016/2 Calibration Container for LT-S0016
LT-S0016/3 Metal Tray for LT-S0016
LT-S0017 Sand Replacement Test Set. 200 mm
LT-S0017/1 Cone With Valve And Upper Cylinder, Ø 200 mm for LT-S0017
LT-S0017/2 Calibration Container for LT-S0017
LT-S0017/3 Metal Tray for LT-S0017

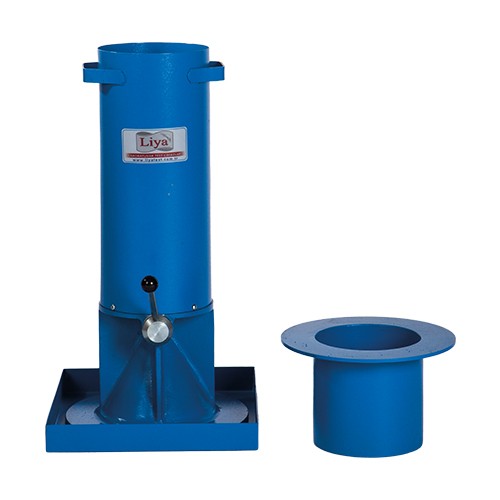

Used to determine the in-situ density of fine grained compacted soil.
Complete set consists of Sand Pouring Cylinder, Metal Tray with Centre Hole and Calibration Container.
The Sand Pouring Cylinder with shutter made of cast aluminum and accurately machined, The Calibration Container and Metal Tray are made of plated sheet steel.
The test set is available in three different sizes.
| Product Code | Product Name | Dimensions (cm) | Weight (kg) |
| LT-S0015 | Sand Replacement Test Set, ∅ 100 mm | 30x30x44 | 8 |
| LT-S0015/1 | Cone With Valve And Upper Cylinder, ∅ 100 mm for LT-S0015 | — | — |
| LT-S0015/2 | Calibration Container for LT-S0015 | — | — |
| LT-S0015/3 | Metal Tray for LT-S0015 | — | — |
| LT-S0016 | Sand Replacement Test Set, ∅ 150 mm | 30x30x57 | 16 |
| LT-S0016/1 | Cone With Valve And Upper Cylinder, ∅ 150 mm for LT-S0016 | — | — |
| LT-S0016/2 | Calibration Container for LT-S0016 | — | — |
| LT-S0016/3 | Metal Tray for LT-S0016 | — | — |
| LT-S0017 | Sand Replacement Test Set, ∅ 200 mm | 50x50x66 | 27 |
| LT-S0017/1 | Cone With Valve And Upper Cylinder, ∅ 200 mm for LT-S0017 | — | — |
| LT-S0017/2 | Calibration Container for LT-S0017 | — | — |
| LT-S0017/3 | Metal Tray for LT-S0017 | — | — |
