HomeMINING AND ORE PREPEARTION DEVICESCrushing Jaw Crusher 100X100
Previous product
Cbr Mould And Accessories
Back to products
Next product
SOIL LATHE

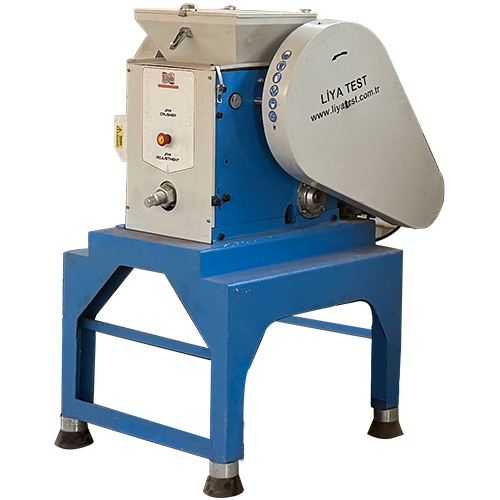

Jaw Crusher 100X100

STANDART:

LT-A0090 Jaw Crusher 100×100 mm

LT-A0091 Jaw Crusher 100×200 mm

LT-A0092 Jaw Crusher 200×300 mm

Categories: Crushing, MINING AND ORE PREPEARTION DEVICES
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • ACCESSORIES
  • TECHNICIAL SPECIFICATIONS
  • TECHNICAL DOCUMENT
Description

Description

Jaw crusher is used for crushing the natural rocks, ores and minerals to millimetric scale by crushing.

It is a very useful for sample preparation in laboratories and industrial plants. Application Examples: alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass and various materials.

It has suitable base for stable fitting the ground. If necessary, can be screwed on the floor or wheel connections can be made to become mobile.

Material Feeding dimension is Ø 90 mm. After crushing, %75 of the all specimens become smaller to 2 mm and also lower than 2 mm.

The capacity of crushing is 200 kg per hour and it is suitable for adding specimens continuously.

3 kW motor is used.

Jaw crusher consists of three main parts; Feeding Funnel, Body and Collector. All of this main partsare manufactured of metal alloy materials which are durable. All of this main parts are electrostaticpainted.

TheFeedingFunnelhas an interiordesignwhichallowstheuserto put his hand inside andwhichpreventtoreboundingthe fed materialbyhittingtojaws.At the same time it is connected to the main body with hinge so that it can be opened easily during cleaning.

TheFeedingFunnelcan be locked to the bodyby a locking mechanismto preventaccidental opening of the crusherduring the operation of the crusher.In case of manual opening of the lock, it has a safety arrangements to stop the device instantly.

The Body is designed the way that as dust will not leak out during operation. The noise emission level according to the working atmosphere is maximum 85 dB.

Drive of the mechanical parts that move the crusher jaws is made by V-belt system whichattached to motor and there is also a central lubrication system that is easy to maintain for all moving parts.

The device has an electronic-mechanical equipment that can protect itself and stop working if wedge of the material and in such situations as overheating of the crusher during operation of the device.

The jaws can be easily removed from the place where they are mounted because the device is suitable for cleaning, maintenance or changing purposes.

Crusher material is 16-18 1,5 Chrome Manganese Steel of the Jaw Crusher. Wear Plates of the Jaw Crusherare manufactured from 450 Brinellmaterial.

The distance between jaws can be adjusted between 0-15 mm and uninterruptedly.

Zeroing setting can be made for the distance between jaws.And also both the zero point and the distance between jaws can be easily read from the outside with an analog display.

There is a Collector at the bottom of the Jaw Crusher.

ACCESSORIES

ACCESSORIES

TECHNICIAL SPECIFICATIONS

TECHNICIAL SPECIFICATIONS

Product CodeProduct NameCapacity (kg/s)Internal     Dimensions (cm)External               Dimensions (cm)Weigh (kg)Power Supply


LT-A0090



Jaw Crusher300100×10050x90x85300380V 50-60HZ 3p
TECHNICAL DOCUMENT

TECHNICAL DOCUMENT
